Post Frame Construction

Post frame construction is the building process used for creating what are frequently referred to as pole barns. Post frame is the construction method, while the pole barn is just one result.

Today we should no longer think of post frame construction as a simple, rectangular metal-roofed structure sitting behind a farmhouse. Post frame buildings offer a wide range of designs that work well in any environment.

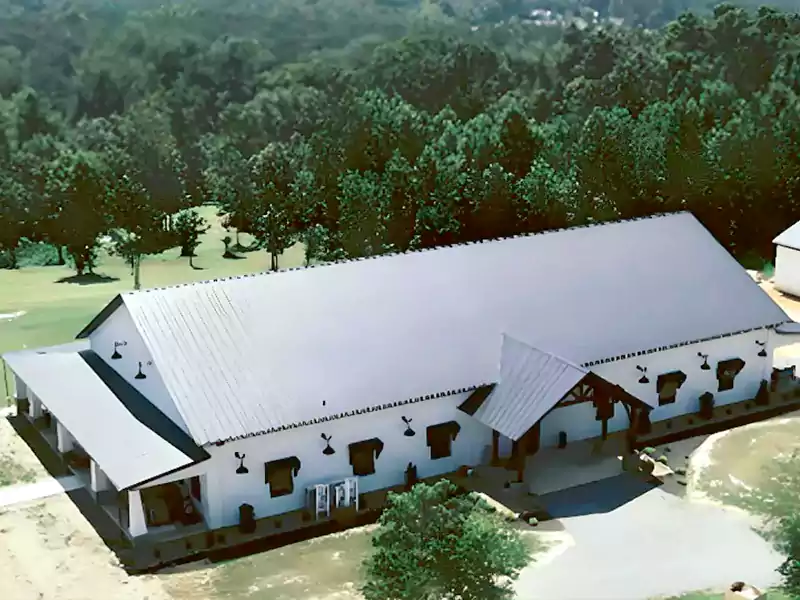

Post frame construction has evolved to be much more than a barn-building method. Quicker, less expensive and more capable of withstanding harsh conditions, post-frame has become a preferred solution for buildings other than agricultural or barn-type structures. Municipal buildings, fire stations, schools, clinics and even attractive homes are built using this method of construction.

Post Frame
Deep South Buildings Post Frame Building

Deep South Buildings and Garages

Typical Footings

Every Deep South Building is built on Solid Poured Concrete Piers.
Posts are mounted on Top of Concrete Slabs on engineered Sturdy-Wall Brackets

Typical Posts

Laminated Posts 8' O.L.
Typical Laminated Posts are Stronger, Straighter and Lighter than Solid Sawn posts.

Deep South Buildings and Garages

Beam (Truss Carrier)

Double 2x8, 2x10, or 2x12
LVL's Are Used In Some Cases
Sized For Each Building
Fastened To Each Post
#2 Southern Yellow Pine Is Standard

Post Frame Building Truss
Deep South Buildings Post Frame Building

Deep South Buildings and Garages

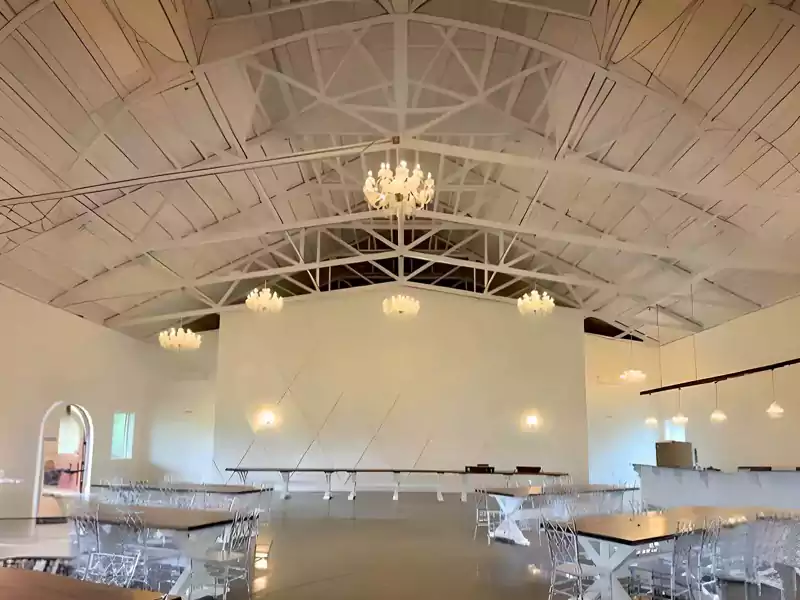

Engineered Wood Trusses

Each Truss Is Engineered For The Building Size and Use Standard Truss Spacing on 4' Centers
Standard Roof Pitch Is 4/12
Steeper Pitches Available

Deep South Buildings and Garages

Wall Girts

2x4's Spaced 24" Are Standard
2x6's Are Used In Some Cases
Metal Siding Attaches to Each Girt
#2 Southern Yellow Pine is Standard

Wall boards on a post frame building are called girts. Girts are installed horizontally and attached to posts. This allows the load to be transferred to poles. This is main reason pole buildings do not need a traditional foundation, which result in substantial cost savings.

Post Frame Building Truss
Post Frame Purlins

Roof Purlins

Deep South Buildings and Garages

Purlins are horizontal beams that span between each of the trusses to provide framing for sheathing material attachment. Their responsibility is to resist gravity and resist uplifting wind loads. Not only do purlins do all of this, but they also laterally brace the rafters, or what’s known as the top of the trusses.

  • 2x4's Spaced 24" Are Standard

  • Purlins Tie Trusses Together And Provide Metal Attachment

  • #2 Southern Yellow Pine Is Standard

Deep South Buildings and Garages

Metal Siding And Roofing

29 Gauge Galvalume or Painted Is Standard
26 Gauge Is Available
40 Yr Film Integrity Warranty on Painted Metal
Ceram-A-Star 1050 Cool Chemistry Coatings
Rat Guard Is Standard

Post Frame Building Truss

Deep South Buildings and Garages

At Deep South Buildings every garage we build is extremely important to us. We listen to your ideas and needs and help choose the right size and style for you
